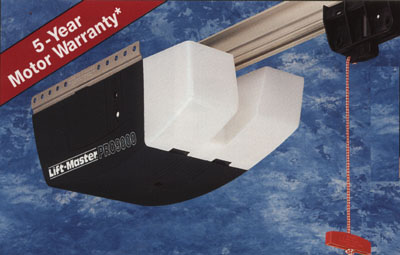

Screw drive operator with
good lighting and minimal maintenance.
|
|
|
 |
The screw drive mechanism in cross-section |
Product summary:
A robust operator that is particularly
suited heavy double-width doors and easy running canopy doors. The enclosed screw drive mechanism
requires no maintenance. Excellent reputation
for quality and reliability at a competitive price.
Medium quietness, can be improved further with the use of Vibration Isolators.
Specifications:
| Operator: | Lift-Master PRO9000 |
| Motor pulling force: |
1000N (100Kg approx') |
| Motor type: | AC |
| Drive mechanism: | Screw |
| Lifting capacity: | 18 to 100Kg's |
| Travel rate: | 160mm per second |
| Installed Length: | 3060mm (not adjustable) |
| Headroom clearance required: | 60mm |
| Maximum door opening: |
2.3m retractable (can be extended - contact us) |
| Force adjustments: | Independent: up and down |
| Lighting: Wattage - Light delay time - |
2 x 40W (bulbs not included) 4.5 minutes |
| Safety/emergency: Down cycle: safety reverse - Up cycle: safety stop - Automatic trolley reconnect - |
Yes Yes Yes |
| Remote controls: Frequency - Number supplied in kit - Coding system - Operating range - Dimesions - Battery - |
418Mhz One (single button) Smart receiver/patented memory system 45m (open field) 90 x40 x19mm (with optional visor clip) 9 volt |
| Wall switch: Number supplied in kit - Illuminated - Dimensions - |
One Yes 21mm x 21mm x 70mm |
| Warranty: General - Motor - |
2 years 5 years |
| Electrical: Voltage - Wattage - Current rating - Standby power consumption - Length of power cord - |
230-240VAC, 50Hz 375W 2A 2.6W 1.2m |
| Operating temperature: | -35°C to 65°C |
| Shipping Weight: Motor & assemblies Rail |
11.1Kg 7.1Kg |
| Construction: Chassis - Rail - Trolley - Screw - |
Steel Solid Aluminium Reinforced Plastic Steel |
Cost:
£293.00 excluding delivery, VAT not charged
Supplied kit Includes:
Motor
Rail suitable for 2.3m (7½ft) high retractable door or 2.15m high canopy door
Remote control x 1 as detailed above
Illuminated wall switch as detailed above
Bracket and linkage suitable for attachment to retractable door or Bow Arm for
canopy door
